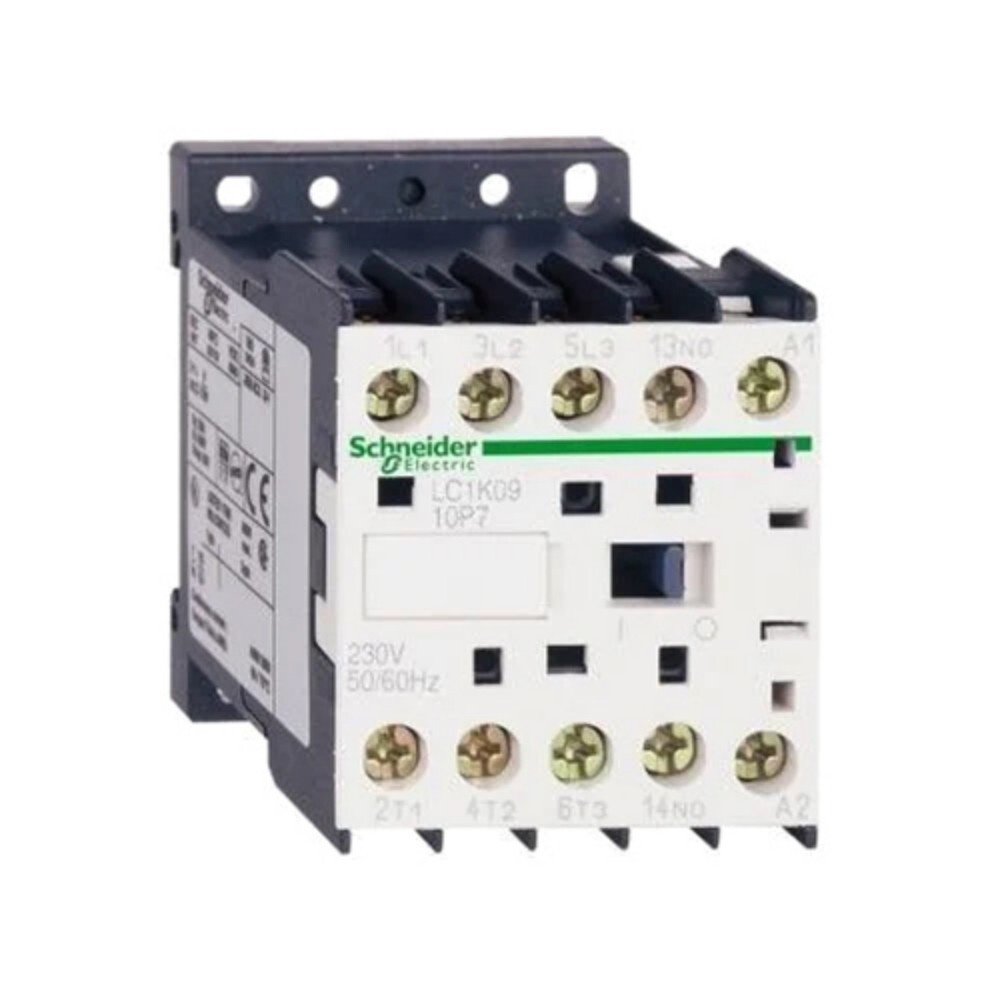

Schneider TeSys K Miniature Contactors

Schneider TeSys K Miniature Contactors Specification

Shape
Rectangular

Operating Temperature
-25 to +55C

Feature
Low power consumption

Connector Type
Screw clamp

IP Rating
IP20

Mounting Type
DIN rail

Efficiency
High switching reliability

Humidity %
5%-95% RH

Overheating Protection
Yes (with thermal overload relay)

Insulation Material
High-grade thermoplastic

Surface Finish
Matte

Power Factor
0.7 (AC operation)

Product Type
Schneider TeSys K Miniature Contactors

Application
Electric

Protection Level
IP20

Frequency (MHz)
50/60 Hz

Rated Voltage
690 V AC

Energy Consumption
3.5 VA (holding)

Output Type
Normally Open (NO)

Color
White

Dimension (L*W*H)
45 x 45 x 49 mm

Weight
130 g approx.

Warranty
Yes

Size
Miniature

Phase
Three Phase

Input Voltage
220-240 V AC

Material
Thermoplastic housing

No Of Poles
3

Connection Type
Screw terminal

Contactor Application
Motor starter

Compact design
Yes

Coil voltage range
24-240V AC/DC

Control Circuit Type
AC 50/60 Hz

Pole Contact Composition
3 NO

ROHS compliant
Yes

Halogen free
Yes

Flame retardant
Yes

Device Application
Contact control

Snap-on mounting
Yes

Utilisation Category
AC-3, AC-4 rated

Auxiliary contact blocks
Optional

Poles Description
3P

System Voltage
690V max

Rated Impulse Withstand Voltage
8 kV

Schneider TeSys K Miniature Contactors Trade Information

Minimum Order Quantity
5 Units

Payment Terms
Cash in Advance (CID), Cash Advance (CA)

Supply Ability
1000 Units Per Month

Delivery Time
7 Days

Main Export Market(s)
Asia

Main Domestic Market
All India

Schneider TeSys K Miniature Contactors About

Schneider TeSys K Miniature Contactors are compact, reliable, and versatile devices used for controlling and switching electrical circuits. They are manufactured by Schneider Electric, a leading company in the production of electrical equipment. The Schneider TeSys K Miniature Contactors are designed for use in low voltage applications up to 690V AC and have a current rating of up to 32A. They are available in various sizes and configurations, including 3-pole and 4-pole versions. The contactors are perfect for use in a wide range of applications, including motor control, lighting, and heating.

Robust Compact Design

With its compact, rectangular shape and thermoplastic housing, the TeSys K Miniature Contactor is built to save space while providing high mechanical strength. Its matte surface finish and lightweight form factor make installation straightforward, even in control cabinets with limited room. The IP20 rating ensures safety from accidental contact, while halogen-free and flame-retardant properties guarantee resilience in demanding applications.

Reliable Motor Starting & Control

Schneider's TeSys K offers a robust solution for motor starter applications, with a rated system voltage of up to 690V AC and support for AC-3 and AC-4 utilization categories. The device delivers high efficiency, low holding power consumption (just 3.5 VA), and operates efficiently across a broad input voltage range. Overheating protection is available when paired with a thermal overload relay, ensuring motors are safeguarded during operation.

Easy Installation and Enhanced Safety

The contactor features snap-on DIN rail mounting and screw clamp terminals, streamlining installation and maintenance. Optional auxiliary contact blocks enhance versatility, accommodating diverse control circuit requirements. Rigorously tested for performance (including temperature and humidity resistance), the TeSys K maintains reliability in environments with 5% to 95% relative humidity and temperatures from -25C to +55C.

FAQ's of Schneider TeSys K Miniature Contactors:

Q: How is the Schneider TeSys K Miniature Contactor installed?

A: The TeSys K contactor is designed for quick, tool-free snap-on mounting onto DIN rails. Its screw clamp connection terminals make wiring secure and straightforward, allowing for easy integration into existing panels.

Q: What are the main benefits of using the TeSys K Miniature Contactor in motor starter applications?

A: This contactor offers reliable motor starting, low energy consumption (3.5 VA holding), high switching reliability, and built-in protection features when used with thermal overload relays. Its compact size saves valuable panel space while maintaining robust performance.

Q: When should auxiliary contact blocks be used with this contactor?

A: Auxiliary contact blocks are recommended when additional signaling, interlocking, or control functions are required beyond the standard 3 NO main poles. They are optional and can be snapped on as needed.

Q: Where can I buy the TeSys K Miniature Contactor in India?

A: Schneider TeSys K Miniature Contactors are available through authorized dealers, distributors, manufacturers, suppliers, traders, and wholesalers across India. Consult the Schneider Electric website for a list of official sales channels.

Q: What process ensures the TeSys K contactor's safety and environmental compliance?

A: The contactor is manufactured using high-grade, halogen-free, and flame-retardant thermoplastic materials, ensuring it meets ROHS environmental directives and safety standards. Its IP20 rating provides further protection for users during operation.

Q: How does the TeSys K Miniature Contactor maintain high switching reliability?

A: Utilizing advanced engineering and quality thermoplastics, the contactor demonstrates consistent performance under frequent switching, high voltage stress, and across varying environmental conditions, ensuring reliable operation up to 690V AC.
