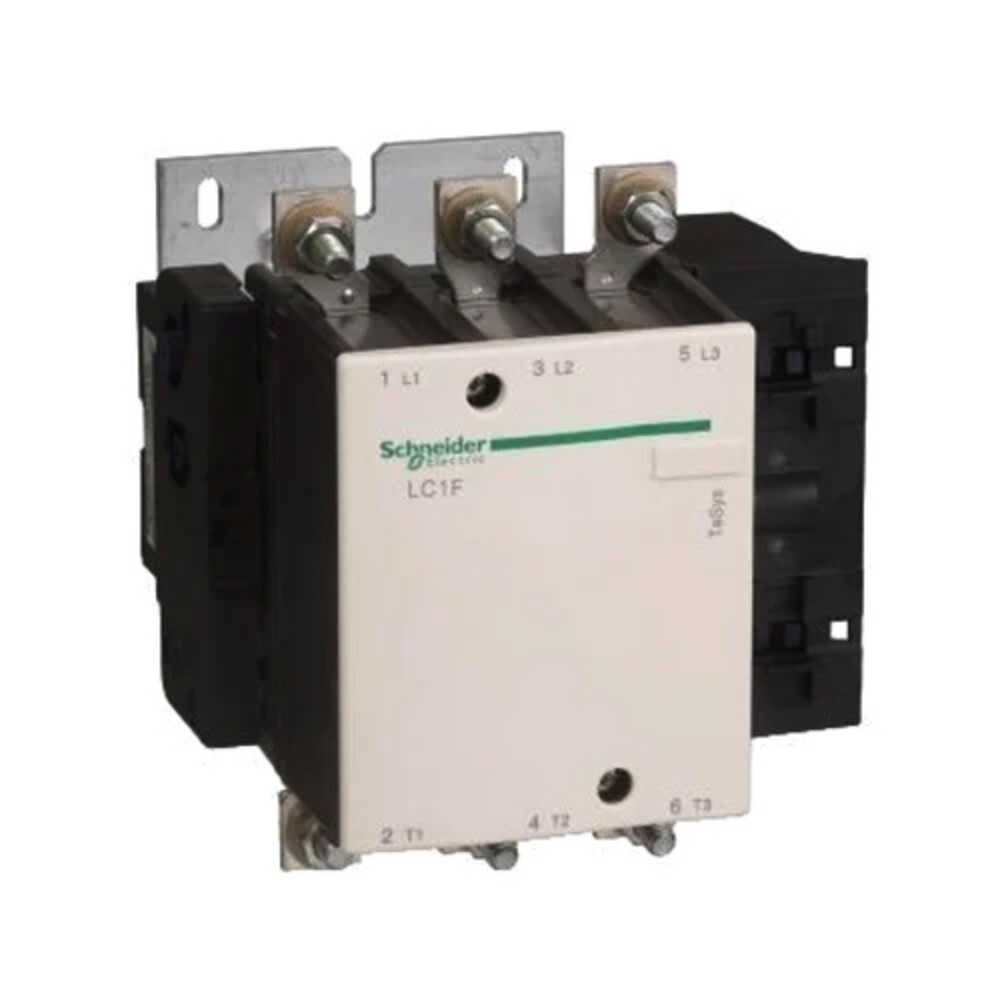

Schneider TeSys F IEC Contactors

Schneider TeSys F IEC Contactors Specification

Operating Temperature
-25C to +60C

Power Factor
>0.8

Overheating Protection
Yes (optional aux)

IP Rating
IP20

Humidity %
5-95% RH

Insulation Material
Thermoplastic

Shape
Rectangular

Feature
High reliability, compact

Connector Type
Bolt/Screw terminal

Mounting Type
DIN rail/Panel

Surface Finish
Matte

Efficiency
High

Product Type
Schneider TeSys F IEC Contactors

Application
Electrical

Protection Level
IP20

Frequency (MHz)
50/60 Hz

Rated Voltage
690 V AC

Energy Consumption
8 VA (coil)

Output Type
Normally Open

Color
Black

Dimension (L*W*H)
120 x 130 x 85 mm

Weight
4.8 kg

Warranty
Yes

Size
Standard industrial

Phase
Three Phase

Input Voltage
24 V DC (coil)

Connection Type
Screw clamp

No Of Poles
4

Material
Thermoplastic, metal

Pole Contact Composition
4 NO

Ambient Air Temp
Max 60C

Rated Impulse Withstand Voltage
8 kV

RoHS Compliant
Yes

Flame Retardant
Yes

Coil Type
Standard

Easy Installation
Yes

Auxiliary Contact Block
Available

Contactor Application
Resistive Load

Control Circuit Voltage
24 V DC

Electrical Life
1 million operations

Poles Description
4P

Shock Resistance
15 g

Mechanical Life
10 million cycles

Standards Met
IEC 60947-4-1

Schneider TeSys F IEC Contactors Trade Information

Minimum Order Quantity
5 Units

Payment Terms
Cash in Advance (CID), Cash Advance (CA)

Supply Ability
1000 Units Per Month

Delivery Time
7 Days

Main Export Market(s)
Asia

Main Domestic Market
All India

About Schneider TeSys F IEC Contactors

Coil Type	Standard
Contactor Application	Resistive Load
Control Circuit Voltage	24 V DC
Pole Contact Composition	4 NO
Poles Description	4P
Rated Impulse Withstand Voltage	8 kV

Being a popular entity, we are providing an inclusive series of Schneider TeSys F IEC Contactors. Our range is extensively employed by our customers owing to high strength and longer life service.

High Durability and Reliability

The TeSys F contactor is engineered for longevity, with a mechanical life reaching 10 million cycles and an electrical lifespan of 1 million operations. Its robust construction, featuring thermoplastic and metal, ensures stable and consistent performance in demanding industrial environments. The product also boasts high shock resistance (15 g), making it suitable for rigorous operations.

Versatile Industrial Applications

Designed for resistive load switching in three-phase systems, the TeSys F supports a wide range of industrial applications. It is compatible with standard industrial DIN rail or panel mounting, and accepts input voltages of 24 V DC for coil operation. The compact size and lightweight design (4.8 kg) make it convenient for installation in varied settings.

Enhanced Safety and Compliance

Safety is a prominent feature, with IP20 protection, flame-retardant construction, and optional auxiliary overheating protection available. The contactor meets international IEC 60947-4-1 standards and is RoHS compliant, ensuring both operational security and environmental responsibility. These attributes make it a reliable choice for industrial electrical systems.

FAQ's of Schneider TeSys F IEC Contactors:

Q: How is the TeSys F IEC Contactor installed?

A: The TeSys F IEC Contactor is designed for easy installation using either DIN rail or panel mounting. Its screw clamp and bolt/screw terminal connections ensure secure wiring, making the setup process straightforward for electricians and installers.

Q: What are the main benefits of using this contactor in an industrial setting?

A: The primary benefits include high reliability, compact design, long mechanical and electrical life, and strong flame-retardant and shock-resistant properties. Its adherence to IEC 60947-4-1 and RoHS compliance ensures safe, consistent performance in demanding environments.

Q: When should I choose this contactor for my application?

A: Select the TeSys F when you require a contactor for resistive load control in three-phase electrical systems, especially where high endurance, operational safety, and compliance with international standards are critical.

Q: What auxiliary options are available for additional protection?

A: An auxiliary contact block is available for this model, and optional auxiliary units can be added for enhanced features such as overheating protection. This boosts both operational flexibility and safety.

Q: Where can this product be sourced in India?

A: The TeSys F IEC Contactor is available through Schneider's network of dealers, distributors, manufacturers, suppliers, traders, and wholesalers across India, making it easily accessible for various industrial needs.

Q: How does the contactor ensure safety during operation?

A: Safety is ensured through features like IP20 protection, matte surface finish, flame retardancy, and optional overheating protection. Its robust construction and compliance with international standards further secure its operation.
