L And T Residual Current Devices

L And T Residual Current Devices
L And T Residual Current Devices

L And T Residual Current Devices Specification

  • Rated Short Circuit Breaking Current
  • 6 kA to 10 kA
  • Phase
  • Single Phase/Three Phase
  • Breaking Capacity
  • 10 kA
  • Mechanical Life
  • Up to 20,000 operations
  • Rated Short Circuit Making Current
  • Up to 10 kA
  • Product Type
  • Residual Current
  • Installation Options
  • DIN rail mounting
  • Function
  • Electric
  • Poles Number
  • 2P, 4P
  • Rated Voltage
  • 230V/415V AC
  • Rated Current
  • 16A, 25A, 32A, 40A, 63A, 80A, 100A
  • Rated Frequency
  • 50 Hz
  • Curves
  • Type AC, Type A
  • Temperature Protection
  • -5C to +55C
  • Weight
  • Approx 200-500g (varies by model)
  • Color
  • White
  • Type of Mounting
  • Plug-in & fixed arrangement
  • Degree of Protection
  • IP20/IP40 front face
  • Status Indicator
  • ON/OFF & Trip indication
  • Operating Voltage Range
  • 0.85~1.1 Un
  • Housing Material
  • High-grade flame retardant plastic
  • Sensitivity (Rated Residual Operating Current)
  • 30mA, 100mA, 300mA
  • Terminal Capacity
  • Up to 35 sqmm


L And T Residual Current Devices Trade Information

  • Minimum Order Quantity
  • 10 Units
  • Supply Ability
  • 1000 Units Per Week
  • Delivery Time
  • 5 Days
  • Main Domestic Market
  • All India


About L And T Residual Current Devices



Unlock enhanced electrical safety with L And T Residual Current Devices, which have garnered favorable reviews for their dependable protection. Noteworthy for their high sensitivity (30mA, 100mA, 300mA), remarkable breaking capacities, and radiant white flame-retardant housing, these devices provide reliable ON/OFF and Trip indication. Reserve confidence with robust specifications: terminal capacity up to 35 sqmm, multiple mounting options, and compatibility with both single and three phase applications. Their mechanical life extends up to 20,000 operations, making them a trusted choice for dealers and distributors across India.

Competitive Edge and Versatile Applications

L And T Residual Current Devices distinguish themselves with robust temperature protection and a high breaking capacity of up to 10 kA, ensuring consistent safety in power distribution. Their plug-in and fixed mount options, along with DIN rail compatibility, cater to diverse plant installations and commercial complexes. Remarked for their reliability, they can be deployed in industrial, residential, and institutional settings, delivering vital protection where it matters most.


Global Markets, Swift Supply, and Certified Excellence

L And T Residual Current Devices command presence in noteworthy international export markets, supported by prompt express shipping and quick dispatch logistics. Certified for safety and performance, these products can be dispatched rapidly due to strong supply ability. Dealers and wholesalers benefit from hassle-free bulk ordering, and the products' certifications guarantee compliance with global standards, elevating trust for projects worldwide.


FAQ's of L And T Residual Current Devices:


Q: How do L And T Residual Current Devices enhance electrical safety?

A: L And T Residual Current Devices quickly detect residual current leaks, reducing the risk of electric shock and potential electrical fires, providing essential protection for users and property.

Q: What installation options are available for these devices?

A: These devices can be installed using plug-in or fixed arrangements, and are compatible with DIN rail mounting, which suits a wide variety of panel configurations in commercial and industrial applications.

Q: When should I consider using a device with a specific sensitivity, such as 30mA or 300mA?

A: For personal protection against electric shock, a 30mA sensitivity is recommended, while higher sensitivities like 100mA or 300mA are suited for equipment and circuit protection in larger installations.

Q: Where are L And T Residual Current Devices most commonly applied?

A: These devices are extensively used in industrial plants, residential complexes, office buildings, and educational institutions, ensuring safety wherever electrical circuits require reliable fault detection.

Q: What is the process for ensuring proper operation and maintenance of these devices?

A: Routine testing and inspection, as outlined in the instruction manual, help verify ON/OFF and trip functionality. Ensuring the correct rated values and compatibility during installation also maintains optimal safety performance.

Q: What benefits do dealers and distributors experience with this product?

A: Dealers, distributors, and wholesalers benefit from favorable reviews, swift order dispatch, certified quality, and a widely trusted brand, ensuring both customer satisfaction and business reliability.

L And T Residual Current Devices
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Residual Current Devices Category

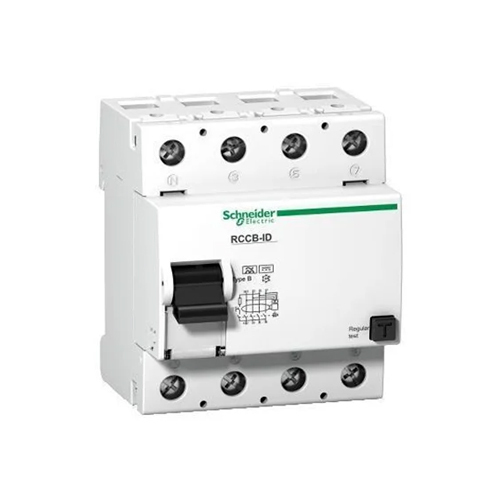

Schneider Residual Current Devices
