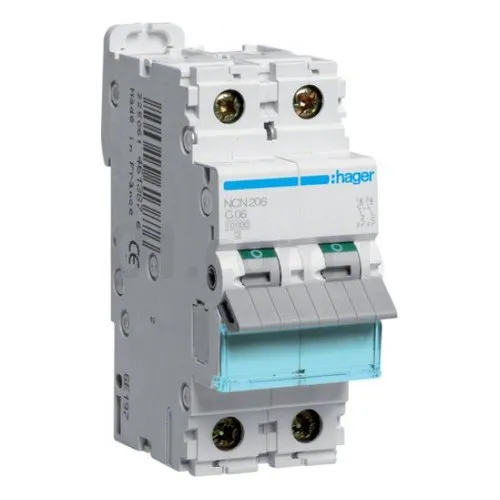

Hager 20a Double Pole MCB

Hager 20a Double Pole MCB Specification

Phase
Double Phase

Breaking Capacity
10kA

Mechanical Life
Up to 20,000 operations

Rated Short Circuit Breaking Current
10kA

Rated Short Circuit Making Current
Up to 17kA

Product Type
High Voltage

Installation Options
DIN Rail Mounting

Function
Electric

Poles Number
2

Rated Voltage
230/400V AC

Rated Current
20A

Rated Frequency
50/60 Hz

Curves
C Curve

Temperature Protection
-5C to +40C

Weight
Approx. 250g

Color
White

Operating Position
Any

Mounting Width
36mm

Connection Type
Screw Terminal

Material
High-grade flame-retardant plastic

Trip Type
Thermal-Magnetic

Terminal Capacity
Up to 25mm2

Response Time
Instantaneous under short circuit condition

IP Rating
IP20

Hager 20a Double Pole MCB Trade Information

Minimum Order Quantity
50 Pieces

FOB Port
Delhi

Payment Terms
Cash in Advance (CID)

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

Main Export Market(s)
Asia

Main Domestic Market
All India

About Hager 20a Double Pole MCB

Experience an unassailable upgrade in your electrical safety with the new Hager 20A Double Pole MCB. This rare and incomparable device features a towering thermal-magnetic trip type, supporting terminal capacity up to 25mm2 and robust IP20 protection. Its versatile installation options, including DIN rail mounting and any operating position, ensure unparalleled adaptability. Crafted with high-grade flame-retardant plastic, it offers instantaneous response under fault conditions, C curve tripping, and a formidable breaking capacity of 10kA. Enjoy the unbeatable price cut exclusively in India through leading dealers, distributors, and wholesalers.

Premium Quality and Versatile Performance

The Hager 20A Double Pole MCB boasts high-grade flame-retardant plastic material, ensuring both safety and durability. Designed for secure electrical connectivity, it features a C Curve, Double Phase operation, and a rated short circuit breaking current of 10kA. Its versatile installation supports a 36mm mounting width and accommodates up to 25mm2 terminal capacity. Ideal for safeguarding residential and commercial setups, it ensures reliable circuit protection and swift response during short circuits, providing unmatched performance for electric distribution.

Swift Delivery and Superior Supply Network

Order completion is streamlined for your convenience with rapid delivery times across India. The Hager 20A Double Pole MCB is readily available thanks to robust supply ability from established distributors, dealers, and wholesalers. Inquire about the asking price to get the best market value on bulk or single orders. With a strong domestic market presence, we guarantee timely fulfillment and direct supplier support to ensure your needs are met efficiently and reliably, maximizing value for every customer.

FAQ's of Hager 20a Double Pole MCB:

Q: How does the Hager 20A Double Pole MCB enhance electrical safety?

A: The Hager 20A Double Pole MCB offers instantaneous response under short circuit conditions with a high breaking capacity, ensuring swift disconnection and effective circuit protection.

Q: What installation options does this MCB provide?

A: This MCB supports DIN rail mounting and can be installed in any operating position, making it highly adaptable for various electrical panel arrangements.

Q: Where can I purchase the Hager 20A Double Pole MCB in India?

A: The MCB is available through a network of dealers, distributors, suppliers, and wholesalers across India. Contact your local authorized partner for availability and pricing.

Q: What are the material features that set this breaker apart?

A: Made from high-grade flame-retardant plastic, it delivers exceptional durability and safety, compliant with stringent quality standards.

Q: When can I expect order completion and delivery after purchase?

A: Orders are processed quickly, with prompt completion and delivery ensured by our strong supply chain, so you receive your product within the stipulated time frame.

Q: How does the mechanical life of the MCB benefit users?

A: With up to 20,000 operations, the MCB provides sustained performance and reliability, reducing replacement frequency and long-term maintenance costs.
